By Matthew Tinker :

1. Drill Point Grinding Set Up
2. MT3 Tool Holder
3. Universal Vice
4. Centre Brackets



TOP

↓ DRILL POINT GRINDING SET UP

This is Matthew Tinkers' homemade drill point grinding set up.

click here to see the source

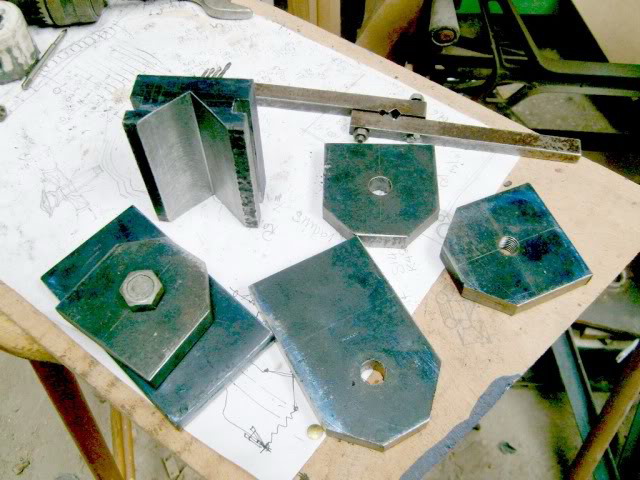

↓ Here are the parts before assembly.
missing image

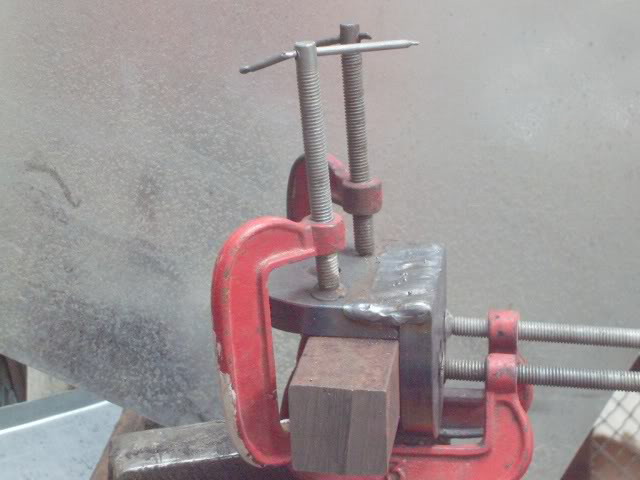

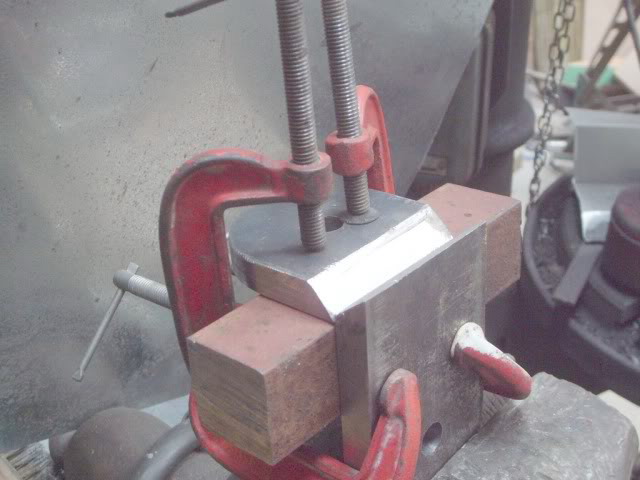

↓ The Universal Head bracket is scratch built and is 20mm lower than the factory part. Here's how it was assembled and welded.
missing image



missing image



missing image

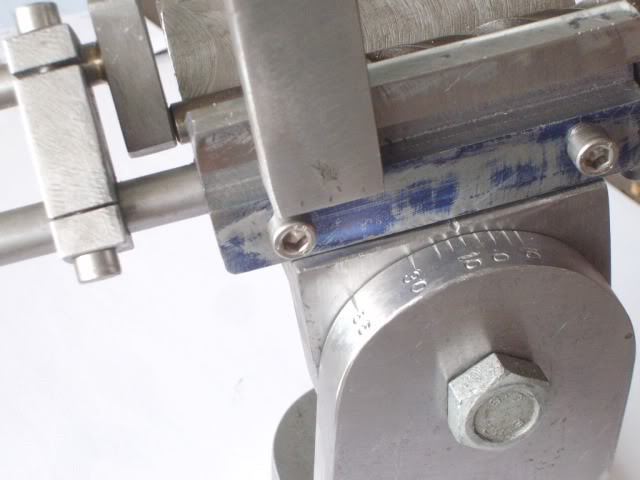

↓ The Universal Head bracket is graduated.
missing image

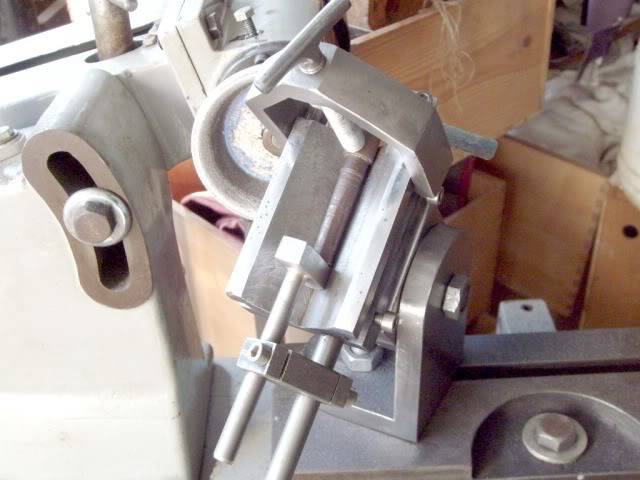

↓ Sharpening a 50mm drill bit.
missing image

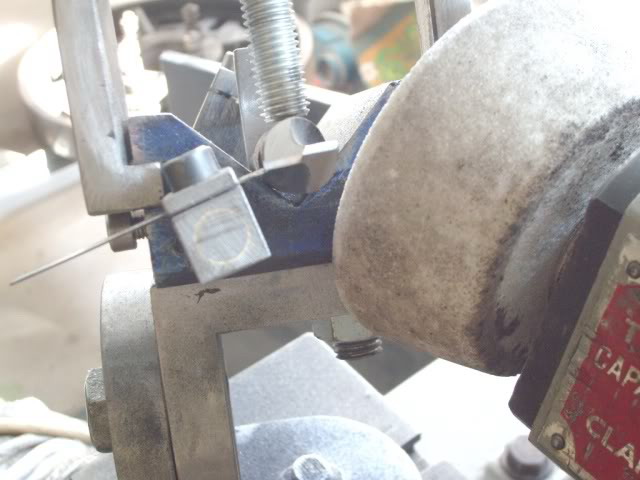

↓ Sharpening a 5/8th drill bit. The finger was awkward to use on the smaller size drill bits.
missing image



missing image

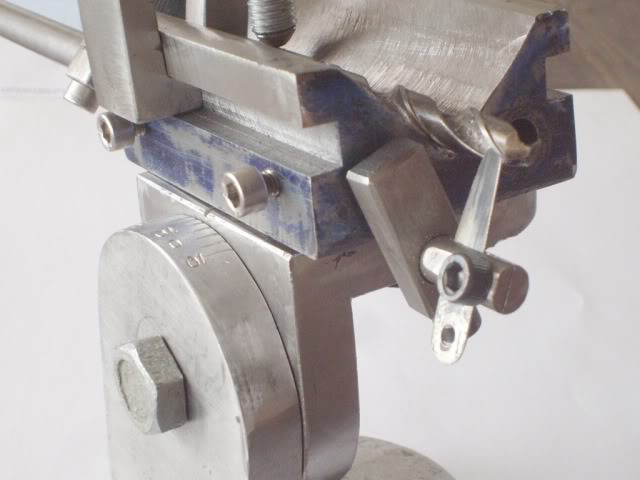

↓ The rear stop mechanism.
missing image




TOP

↓ MT3 TOOL HOLDER

This is Matthew Tinkers' homemade MT3 Tool Holder.
The MT3 tool holder is fixed to his homemade Universal Head Bracket (see above).
This is a really neat job, and it just goes to show you can still get by if your grinder came without the tooling.

click here to see the source and his write up.

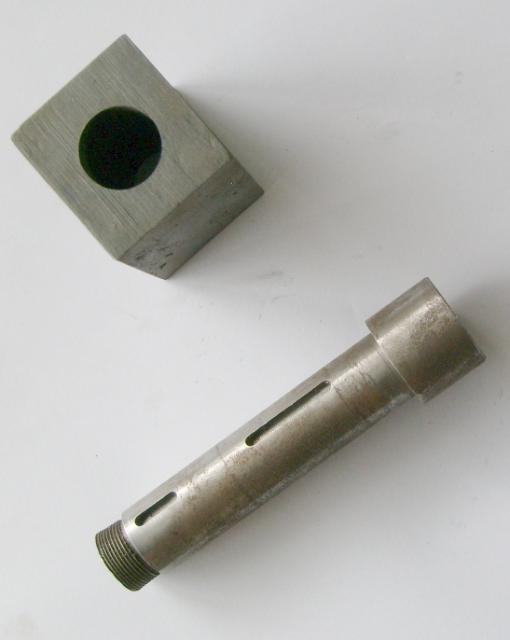

↓ This photo shows a ZA12 (zinc alloy) block on the left. The block is bored 30mm.
The 30mm diameter shaft on the right has an internal MT3 taper. It is a redundant shaft off a mini mill.
The shaft is a good tight sliding fit in the zinc block.
missing image

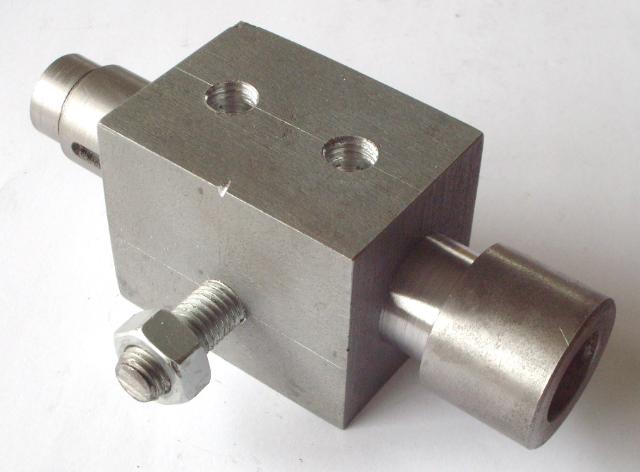

↓ The block is drilled and tapped. The finger assembly is attached to the two inline holes on the top.
The block is fixed to the Universal Head Bracket by the 14mm stud on the side.
The 'nick' in the block (seen just above the stud) is used to index the block against the scale on the Universal Head Bracket.
missing image



↓ The zinc block was not quite long enough, so a 'locking block' was attached to the end of it.
The MT3 shaft is locked by means of a split cotter arrangement.

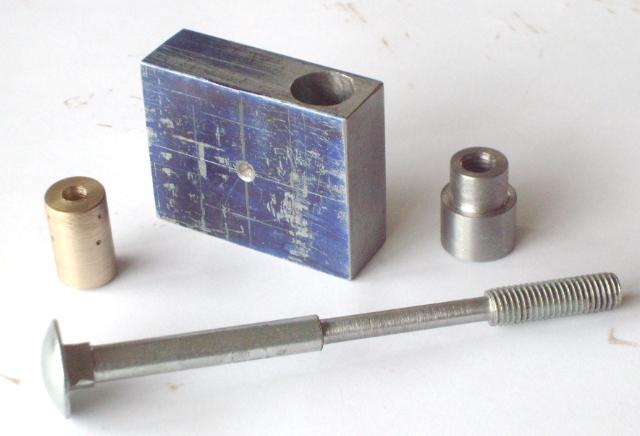

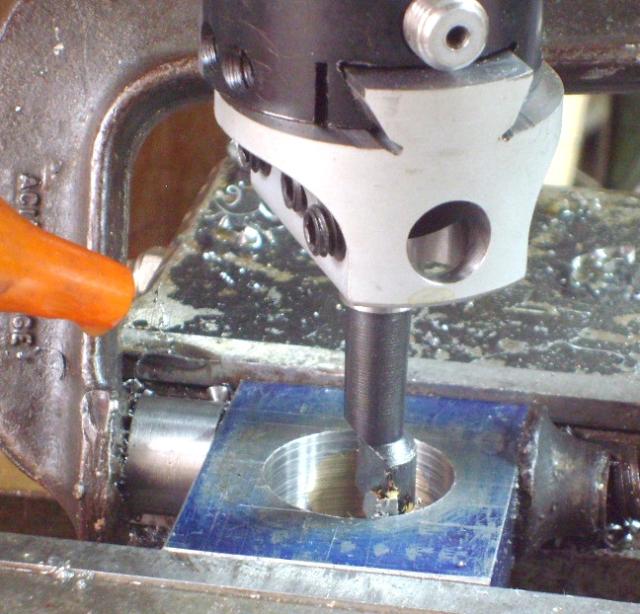

Here is how the 'locking block' was made.
missing image



missing image



↓ The 'locking block' is attached to the main block by only 2 socket screws, due to lack of space.
missing image

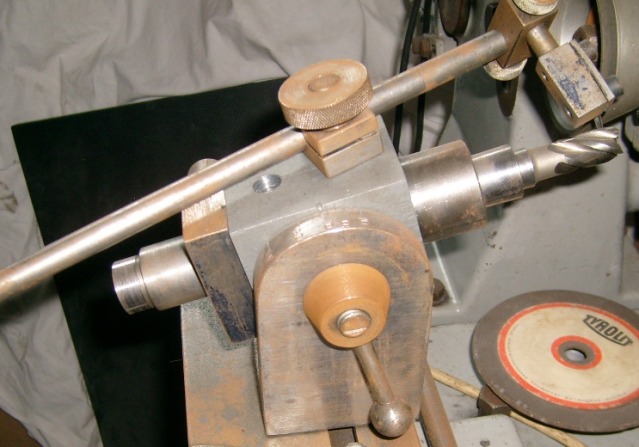

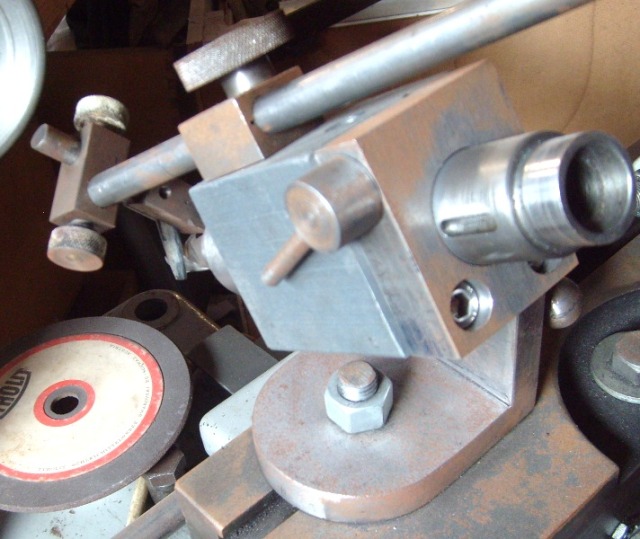

↓ The block is aligned to the index marks on the bracket.
The ball handle locks the assembly on the bracket.
missing image



missing image




TOP

↓ UNIVERSAL VICE

This is Matthew Tinkers' homemade Universal Vice.



click here to see the source and his write up.
missing image

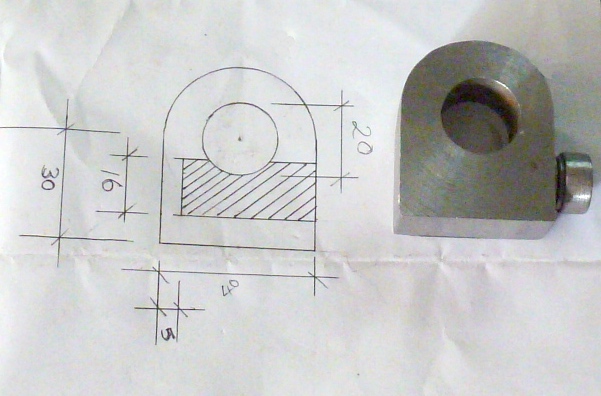

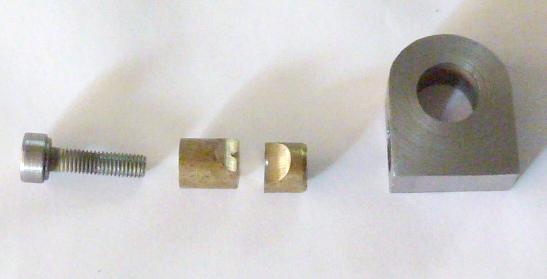

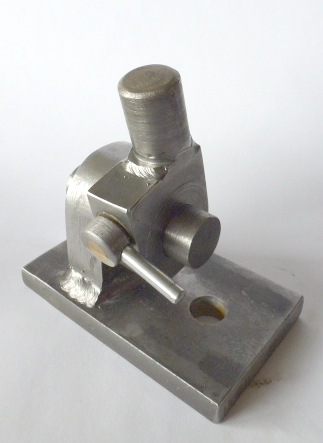

↓ Split Cotters are used to lock the rotating parts.
The vice consists of 3 "D" shapes, two of which have split cotters.
missing image



missing image

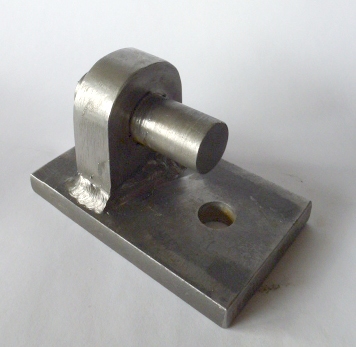

↓ The base plate "D" is a little bigger than the others. The 20mm diameter CRS round was welded to the first "D" and the face that mates with the second was faced off.
missing image

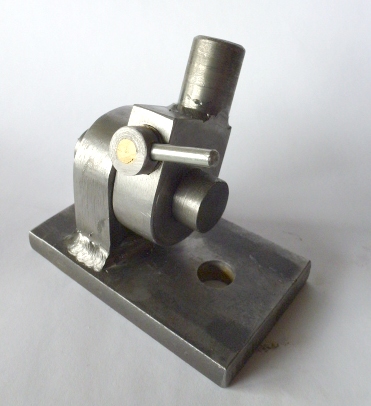

↓ A second stub was welded to the second "D" which was faced off to mate with the first using a stub of CRS locked with the split cotter.
missing image



missing image

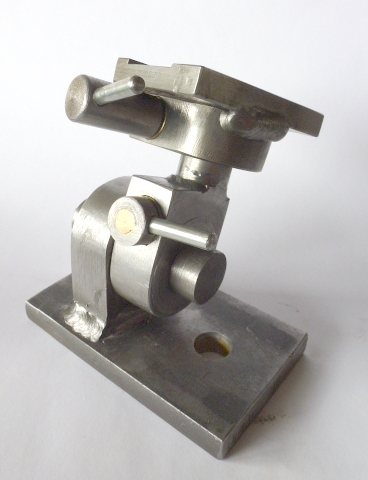

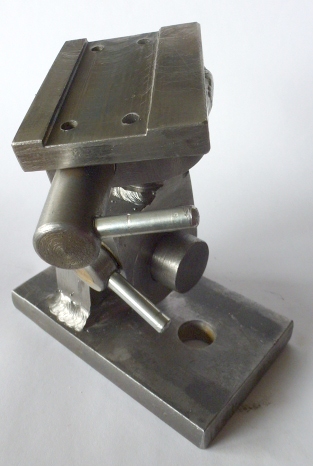

↓ The third "D" with the second split cotter with the vice mounting plate welded to it.
missing image



missing image



missing image

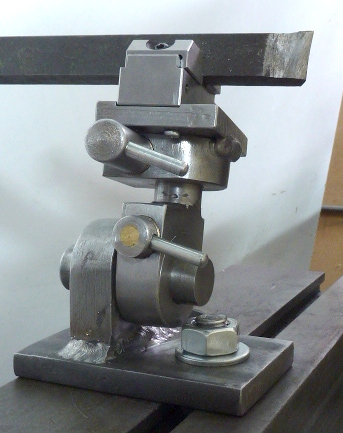

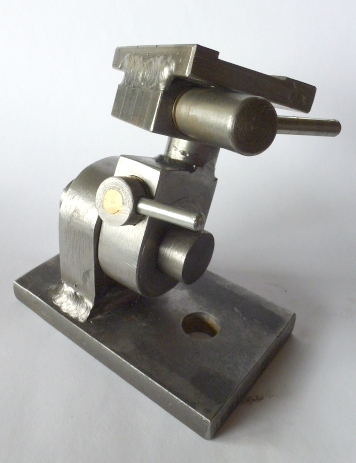

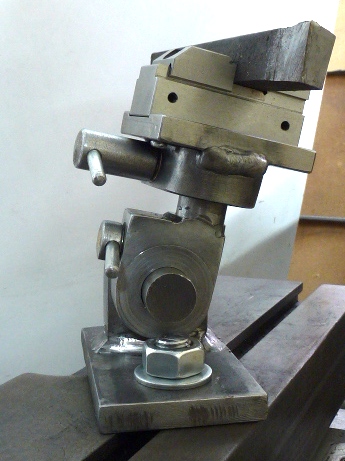

↓ The vise is a 1" screwless from CTC Tools which is big enough for most lathe tools found in the home workshop.
missing image



missing image



missing image




TOP

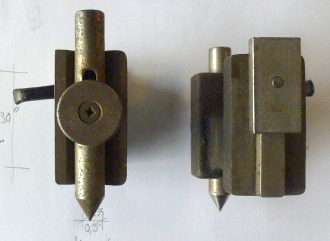

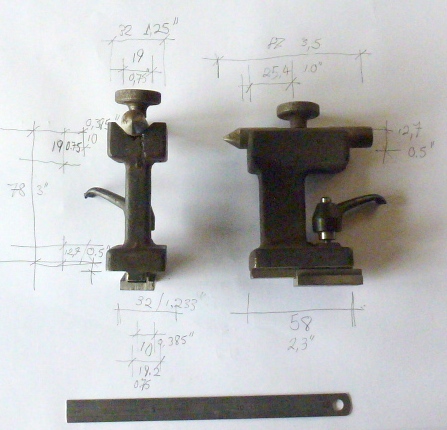

↓ Centre Brackets


missing image



missing image



missing image



missing image
