PERFECTO - OTHER PERFECTO EQUIPMENT




Here are some files, pictures and information that are Perfecto related.

Some of the lathe parts are very similar to the Shaper parts.

BOTTOM  HOME




CONTENTS OF THIS PAGE (dd-mm-yy) - OTHER PERFECTO EQUIPMENT
** PERFECTO LATHES **
04-10-14 Lathe - Stroud
25-01-14 Lathe - No 413
13-07-14 Drill - Nottingham
23-07-16 Lathe - Bury St Edmunds
29-09-14 Lathe - Birmingham - No 819
17-06-13 Lathe - Shipton On Stour
12-03-14 Drill - Chingford
04-05-15 Lathe Literature
24-08-14 Lathe - No 303
22-04-14 Lathe -
** PERFECTO MISC **
03-04-15 Lathe - Solihull
08-07-14 Lathe - Livingstone - No 222
17-12-05 Lathe - Turbosport Forum
09-02-14 Lathe Bearings - Cornwall
08-01-15 Lathe - Shoreham By Sea
16-06-14 Lathe - Brewood
22-03-16 Lathe - Saffron Walden

04-10-14 Lathe - Bury St Edmunds
09-02-14 Lathe - Eastbourne
** PERFECTO DRILLS **





TOP

PERFECTO LATHES.




TOP

↓ [23-07-16] This was for sale on ebay, located in Bury St Edmunds.

This sellers description gave some very good information:-

Very lightly used lathe in good condition, Centre height 3.5 " and 16" between centres, 6" dia face plate.
Boring Table 7" x 3" four 5/16" Tee Slots
Lead Screw 5/8" dia 8 TPI
Mandrel No 2 Morse Taper Bored through 5/8"diameter
Mandrel Nose 1-1/8" 12 TPI Flange 1-1/2" dia
Set over Tail Stock
Tailstock Barrel No 1 Morse Taper bored through 3/8" dia
Headstock backgeard with six mandrel approximate speeds 30, 60, 120, 175, 350 and 700
Vee drive pulley 1/2" A section
Adjustable bronze bearings
Graduated Dials to top slide and cross slide
Complete with change gears
Overall length 32", width 11" and height 11"
Gap in bed 2-1/4" x 1-1/4" width across bed 3" swing in gap 9"
1/4 HP Crompton Electric Motor 1425 RPM 220/250 volts
Complete with 6" face plate
4" Three Jaw Self Center Chuck with Interal and External Hard Jaws
4.5" Four Jaw independent Chuck



missing image



missing image



missing image



missing image



missing image



missing image



missing image



missing image




TOP

↓ [04-05-15] Lathe Literature.



↓Lathe specifications - all models.
missing image



↓Model 3
missing image



↓Model 2
missing image



↓Model 1
missing image



↓Lathe Accessories
missing image
TOP

↓ [03-04-15] This sold on ebay for 136 pounds, located in Solihull.



missing image



missing image



missing image



missing image



missing image




TOP

↓ [08-01-15] This sold on ebay for 163 pounds, located in Shoreham By Sea.



missing image



missing image



missing image



missing image



missing image



missing image



missing image



missing image




TOP

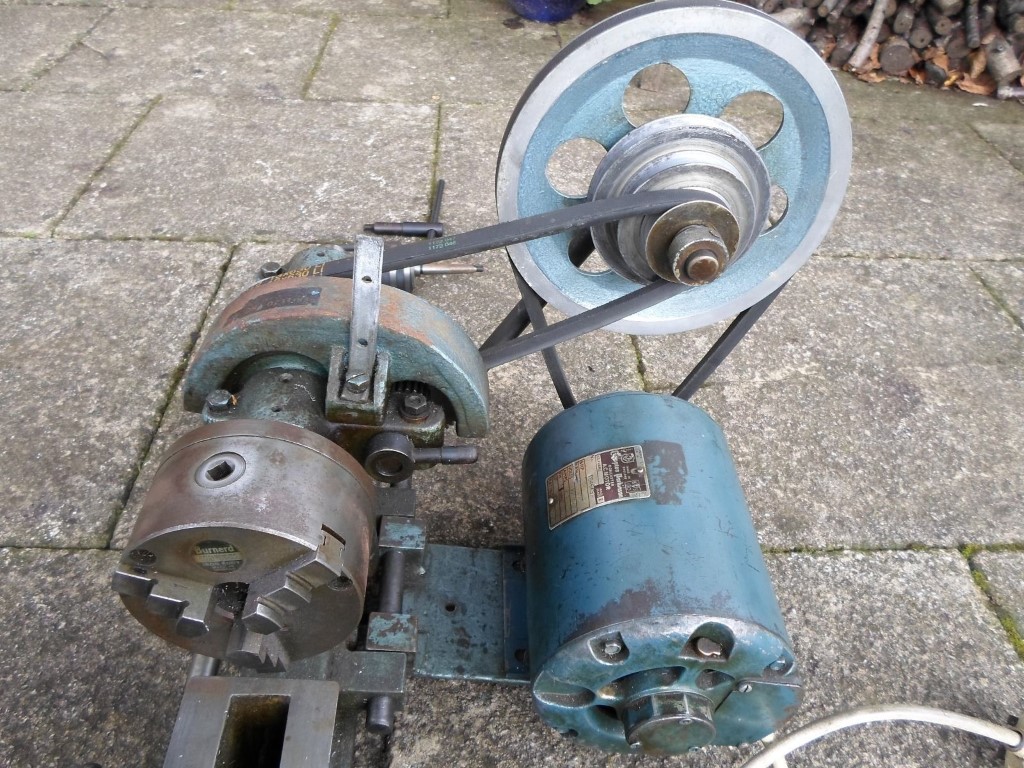

↓ [20-10-14] This was for sale on ebay, located in Bury St Edmunds.



missing image



missing image



missing image



missing image



missing image



missing image



missing image



missing image



↓ The Machine Number plate is missing.
missing image



missing image



missing image



missing image




TOP

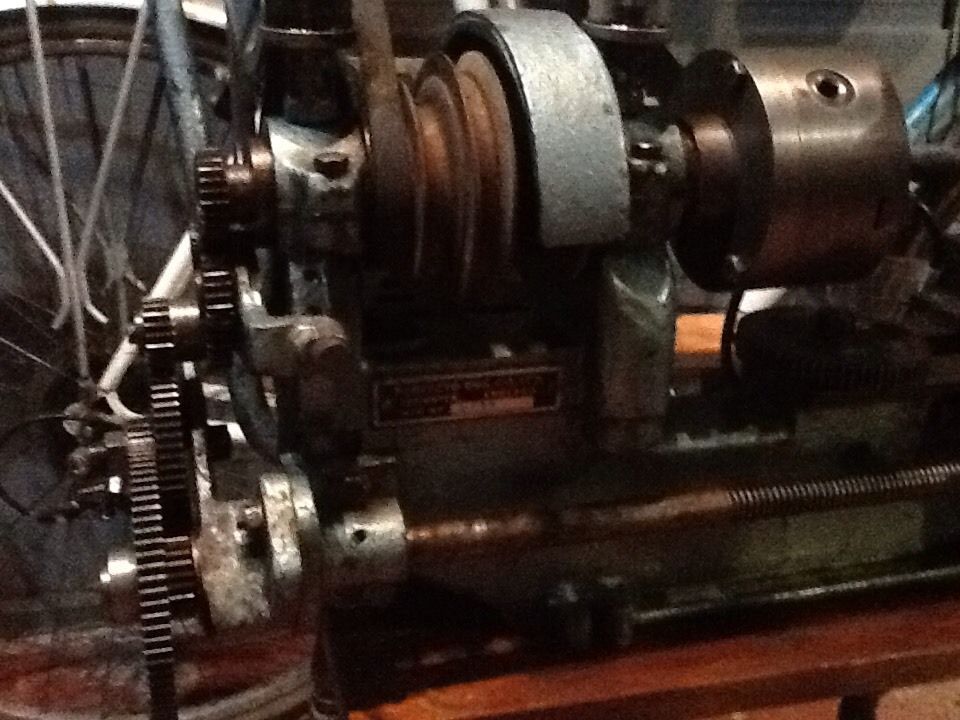

↓ [04-10-14] This lathe sold on ebay for 155 pounds, located in Stroud.



missing image



missing image



missing image




TOP

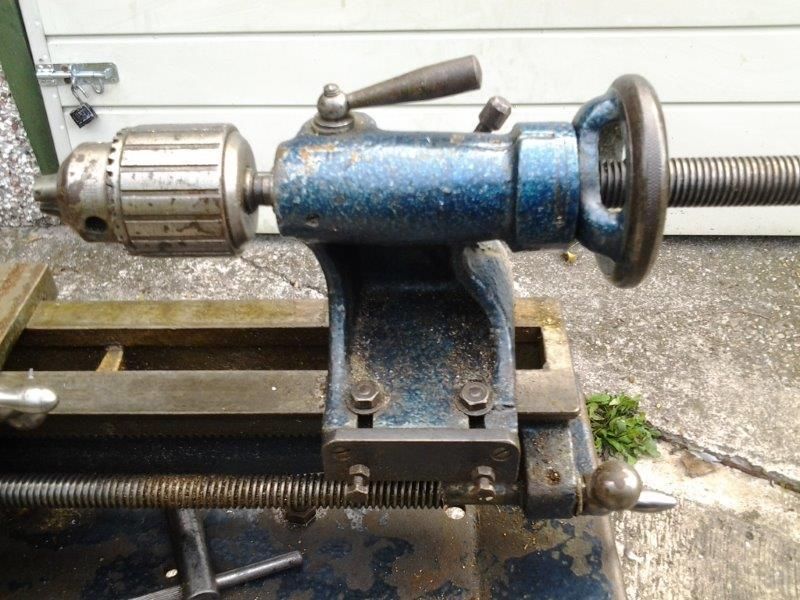

↓ [29-09-14] This lathe sold on ebay for 155 pounds, located in Birmingham.

Machine number 819.

missing image



missing image



missing image



missing image



missing image



missing image



missing image



missing image




TOP

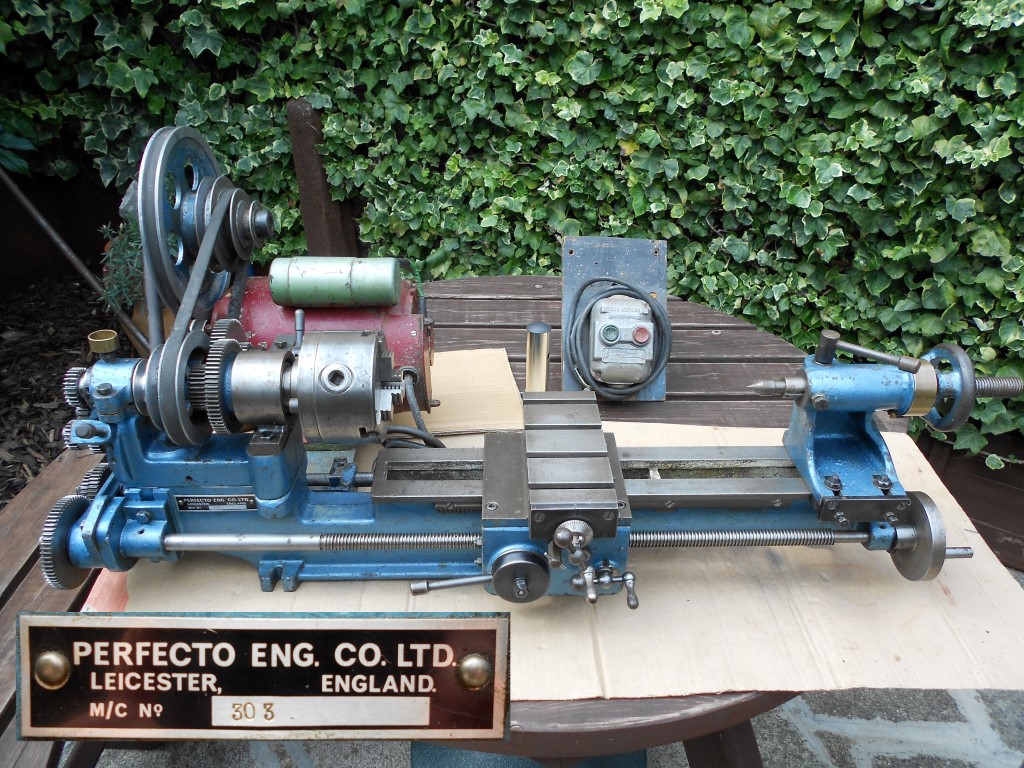

↓ [24-08-14] Lathe.

Machine number 303.

This looks like a 1960s Perfecto.



missing image



missing image



missing image



missing image



missing image



missing image



missing image



missing image




TOP

↓ [08-07-14] This lathe sold for 282 pounds, located in Livingstone.

Machine number 222.



missing image



missing image



missing image



missing image



missing image



missing image



missing image



missing image




TOP

↓ [16-06-14] This sold on ebay, located in Brewood, Stafford.



An offer of less than 325 pounds was accepted.



missing image



missing image



missing image



missing image



missing image



missing image




TOP

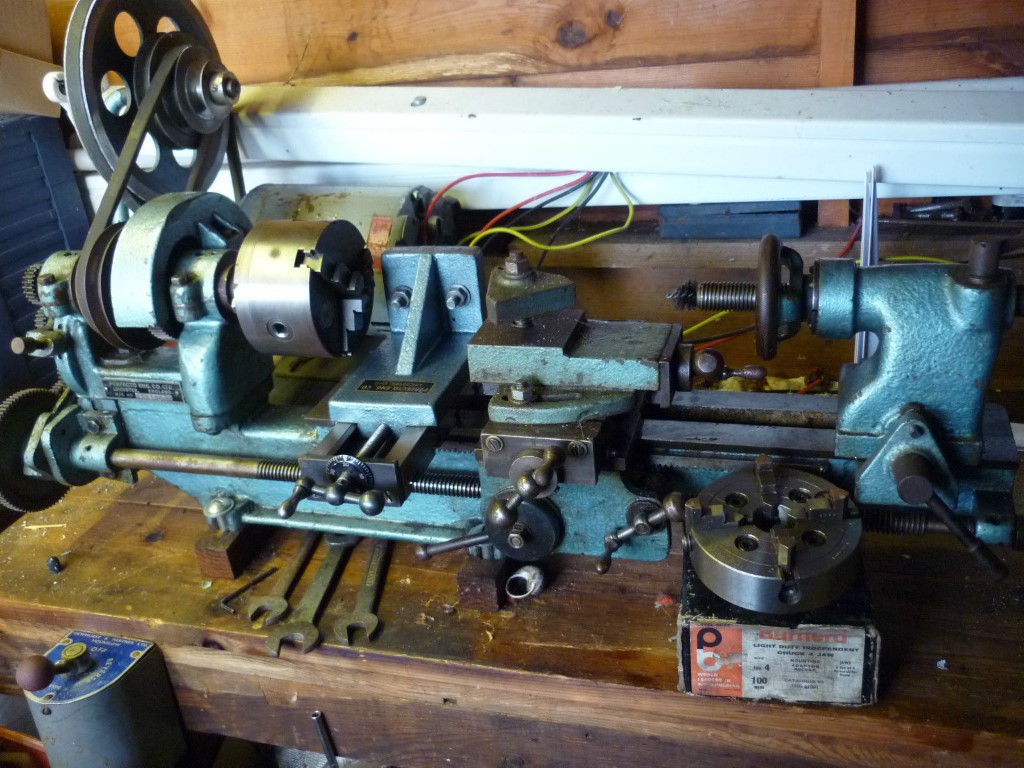

↓ [09-02-14] This sold on ebay for 362 pounds, located in Eastbourne.

missing image




TOP

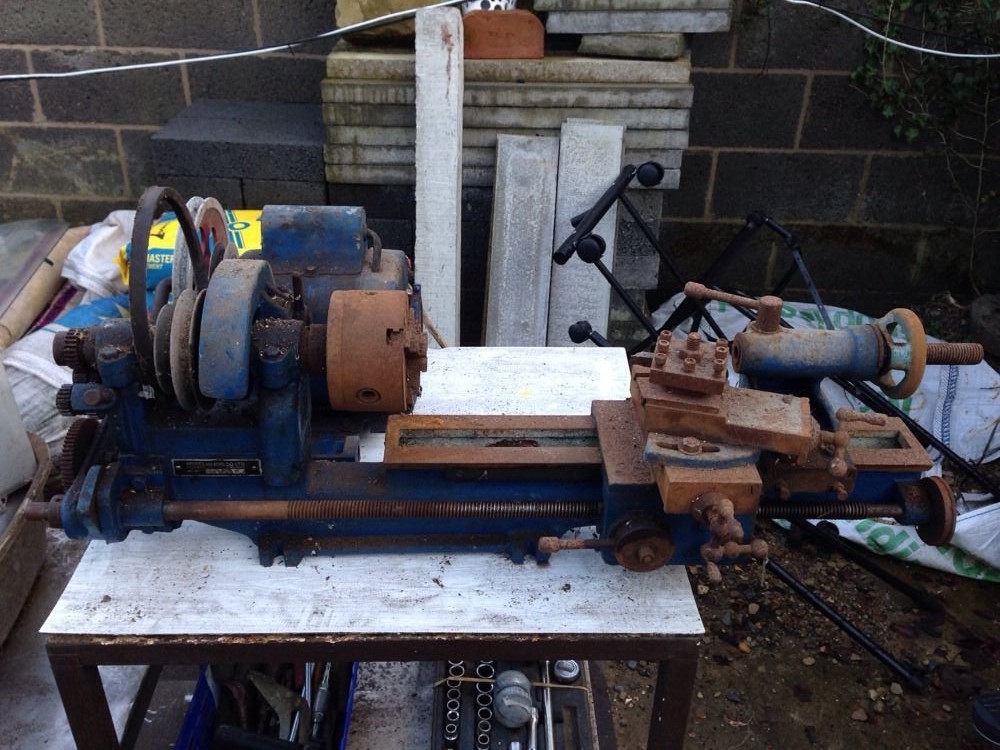

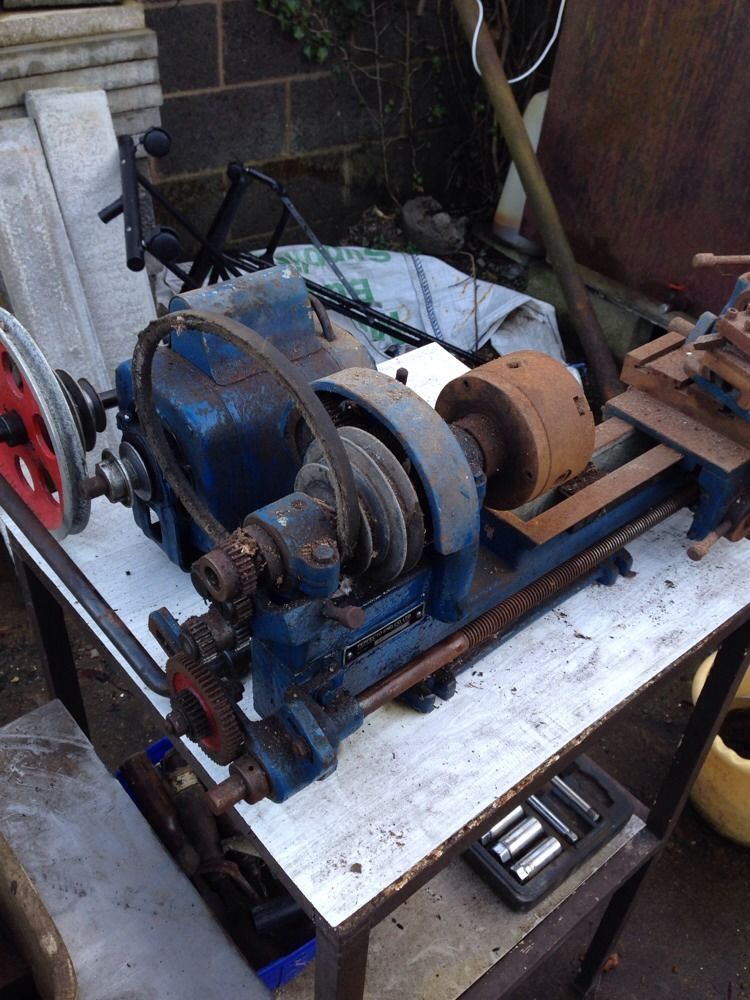

↓ [25-01-14] Lathe.

Machine number 413.


Note the dials, handles, slides, and tail stock handle are very similar to the equipment on the Perfecto shaper.



missing image



missing image



missing image




TOP

↓ [17-06-13] Lathe, located in Shipton on Stour.



missing image



missing image



missing image



missing image




TOP

↓ [22-04-12] Lathe.



missing image




TOP

↓ [17-12-05] Lathe for sale for 100 pounds on the turbosport forum website.



missing image



missing image




TOP

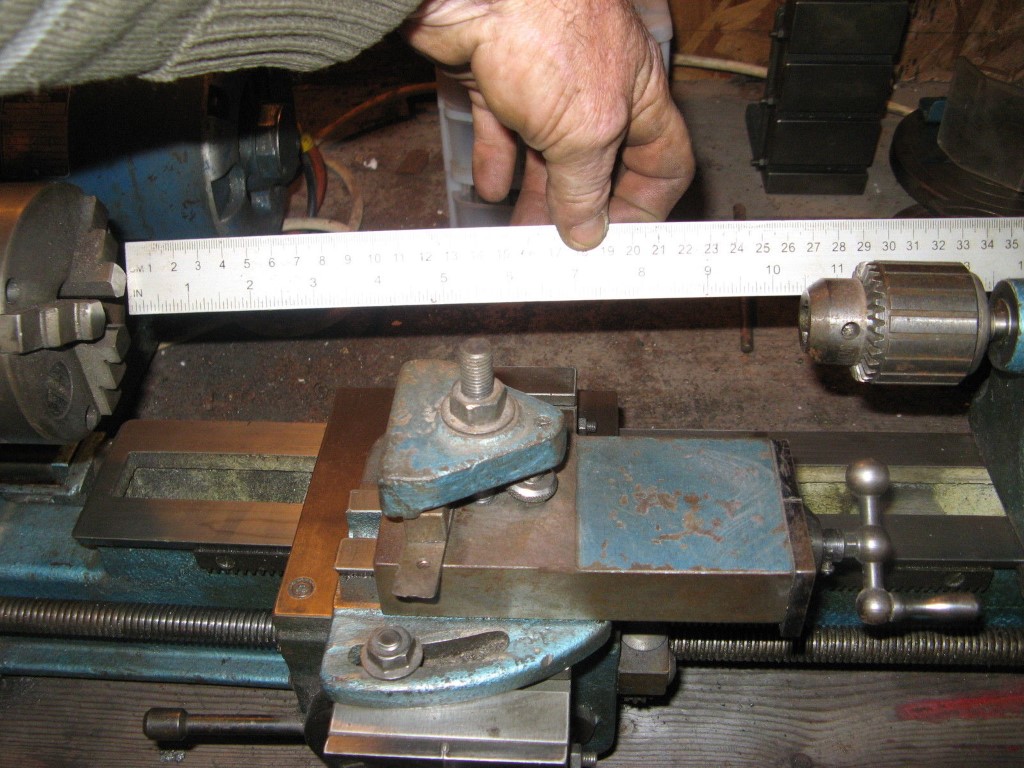

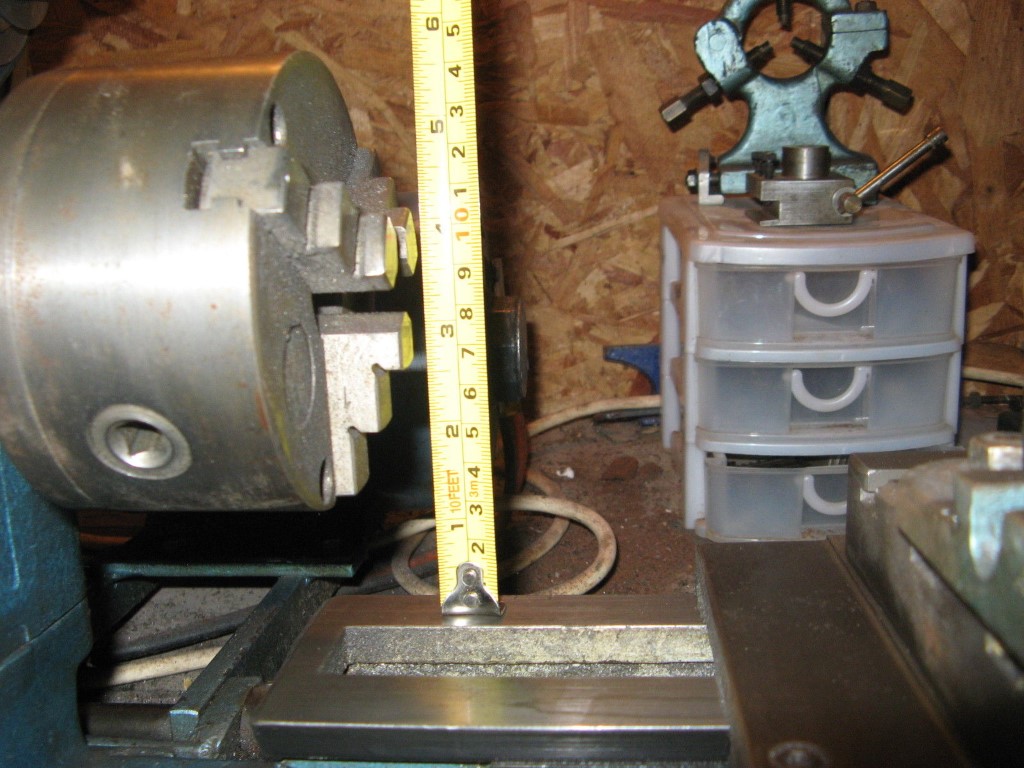

↓ [22-03-16] Lathe, for sale on ebay, located in Saffron Walden.



missing image



missing image



missing image



missing image



missing image



missing image



missing image



missing image



missing image



missing image



missing image



missing image




TOP

PERFECTO DRILL.




TOP

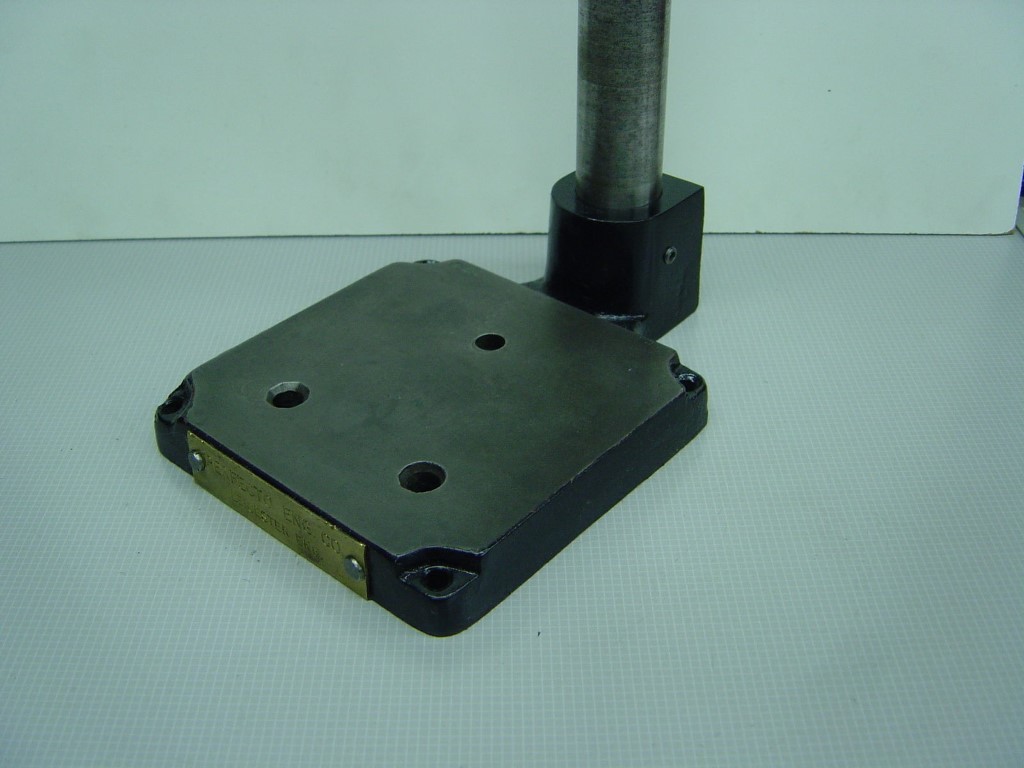

↓ [13-07-14] Drill, located in Nottingham.


It was described as:
Old quill feed drilling machine as used by clock and instrument makers.

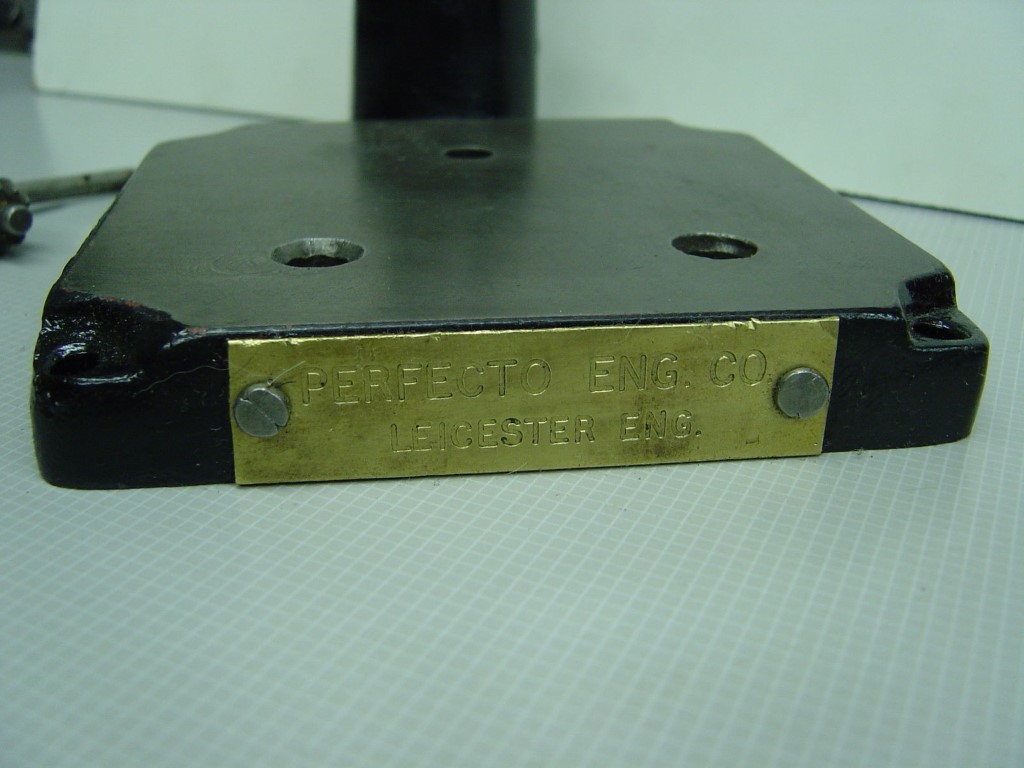

Made by: Perfecto Eng. Co., Leicester, England.
Fitted with a quality Sheffield made Jacobs No.30 5/16" capacity chuck.
2" quill travel.
The 1 3/16" diameter column has been replaced at some time by a longer turned bar to increase the working height.



missing image



missing image



missing image



missing image



missing image



missing image



missing image




TOP

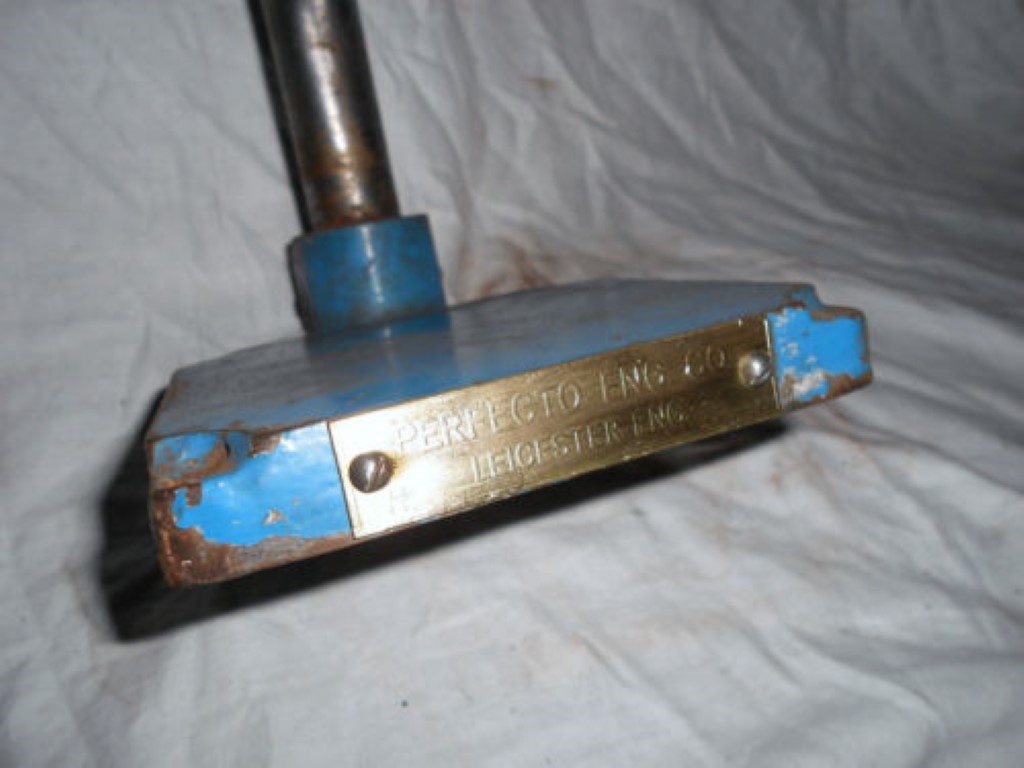

↓ [12-03-14] Drill, located in Chingford.

Perfecto engineering co Ltd of Leicester model engineers compact pillar drill (sold for 58.89 pounds)

It was described as:
Perfecto engineering co Ltd of Leicester model engineers compact pillar drill

This is a great little pillar drill made by the Perfecto engineering company of Leicester who were renowned for they're Lathes and shaping machines
I have not ever come across another Pillar drill made by the Perfecto company so must be a rarity!

The drill stands just over 2 feet tall and is only 8 1/2" inches deep so great where bench space is at a premium

The drilling depth is 2" inches
The table measures 6 1/4" in diamter
The rise and fall of the table is 6 1/4"

The chuck is made by 'Belco' and is a 0 - 3/8" but has no chuck key as this was lost

There is a matching 3 speed pulley included in the sale but you will need to source an electric motor of adequate power ( 1/4 hp should be sufficient enough)

A very nice pillar drill that is ready to be set and used



missing image



missing image



missing image



missing image



missing image



missing image



missing image




TOP

PERFECTO MISC.




TOP

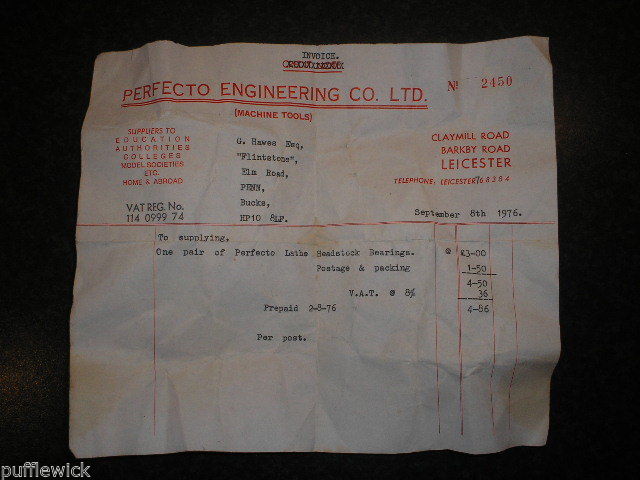

↓ [09-02-14] Lathe headstock bearing, located in Cornwall.



missing image



missing image



missing image



missing image



missing image
